DS-3E0326P-E Hikvision 24-Port 100 Mbps Unmanaged PoE Switch High power 230W

Description

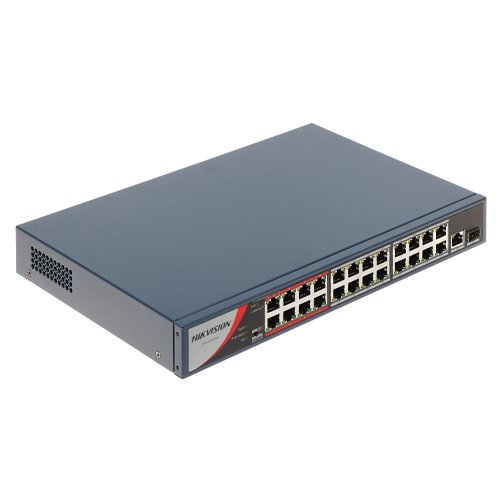

Hikvision 24-Port 100Mbps Unmanaged PoE Switch – Model DS-3E0326P-E

Overview:

The DS-3E0326P-E Unmanaged Switch from Hikvision is an economical networking solution that provides reliable and efficient connectivity. This switch features 24 ports supporting Power over Ethernet (PoE) technology, making it ideal for powering PoE-compatible devices such as IP cameras, VoIP phones, and wireless access points without the need for separate power adapters.

Key Features:

1. Advanced PoE Technology:

   • 24 ports with 10/100 Mbps speed supporting PoE.

   • Complies with IEEE 802.3af/at standards, delivering up to 30W per port.

   • Total power budget: 370W, enabling simultaneous operation of multiple devices.

2. Reliable and Efficient Performance:

   • Supports speeds up to 100 Mbps on all ports.

   • Auto-MDI/MDIX technology for automatic cable recognition (no crossover cables needed).

   • Supports Flow Control to prevent packet loss.

3. Durable and Robust Design:

   • Metal housing for effective heat dissipation.

   • Built-in cooling fan to ensure stable performance under heavy load.

   • Single power input for easy connectivity.

4. Easy Installation and Operation:

   • Plug-and-play setup without complex configurations.

   • LED indicators for power, data, and PoE status monitoring.

5. Comprehensive Protection:

   • Protection against overcurrent and overvoltage.

   • Power Delay function to safeguard connected devices.

Technical Specifications:

• Number of Ports: 24 PoE ports + 2 Gigabit uplink ports

• Port Speed: 10/100 Mbps

• PoE Standard: IEEE 802.3af/at

• Maximum Power Output: 370W

• Power per Port: Up to 30W

• Operating Voltage: 100-240V AC, 50/60Hz

• Operating Temperature: 0°C to +40°C

Applications:

• IP camera surveillance systems

• VoIP and IP phone networks

• Wireless access points (Wi-Fi)

• Medium-sized office and building networks

Why Choose DS-3E0326P-E?

• Cost-saving with PoE technology eliminating separate power adapters.

• High reliability and stable performance under heavy load.

• Large port capacity suitable for medium-sized networks.

• Compatible with all PoE-standard devices.
