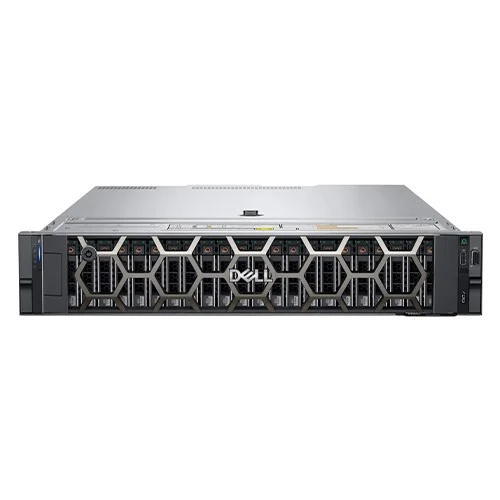

Dell PowerEdge R760xs Enterprise Server — Intel Xeon Silver 4410Y (12 Cores / 24 Threads), 32GB DDR5 RDIMM 6400MT/s, 2.4TB SAS 10K, 12×3.5″ Bays, PERC H755, iDRAC9 Enterprise, Dual 800W Redundant PSU, 3Y NBD

Description

Overview

The Dell PowerEdge R760xs is a 16th-generation 2U rack server. This single-socket configuration pairs one Intel Xeon Silver 4410Y with 32GB of DDR5 and a twelve-bay 3.5" chassis — a lower entry cost with a clear upgrade path, since the second socket and remaining memory slots stay available without replacing the server.

⚡ Processing

• Single Intel Xeon Silver 4410Y — 12 Cores / 24 Threads
• 2.0 GHz base with Turbo Boost · 30MB cache · 16GT/s · Hyper-Threading · 150W TDP
• DDR5-4000 memory · second socket free for a future CPU upgrade

💾 Memory & Storage

• 32GB DDR5 RDIMM — 1 × 32GB at 6400MT/s, Dual Rank
• 2.4TB SAS ISE 12Gbps 10K 512e — 2.5" enterprise drive in a 3.5" hybrid hot-plug carrier
• 3.5" chassis with up to 12 hot-plug drives (SAS/SATA) with PERC11 — a factory option that cannot be retrofitted; plan capacity now
• PERC H755 Adapter, Low Profile — hardware RAID with cache and battery backup

🌐 Management & Networking

• iDRAC9 Enterprise 16G — full out-of-band remote management, virtual console and virtual media
• Broadcom 5720 Dual Port 1Gb On-Board LOM — two integrated gigabit ports
• No OCP 3.0 card — a 10/25GbE NIC can be added later if needed
• Riser Config 0 — 1×16 + 1×8 PCIe lanes with one CPU installed

🔌 Power & Rack

• Dual Redundant (1+1) Hot-Plug 800W MM PSU (100-240Vac) — either supply can fail without downtime
• 2 × C13/C14 jumper cords, 2M, 250V, 10A
• ReadyRails Sliding Rails without cable management arm (B21) · 2U standard bezel
• No DVD drive · No TPM module

👥 Ideal Workloads

• Virtualization — VMware vSphere, Hyper-V and Proxmox for mid-size organisations
• Databases & ERP — SQL Server, Oracle and Odoo
• CCTV / VMS storage — twelve bays make a strong recorder backbone
• File and backup storage with a clear upgrade path (second CPU and more memory)

📋 Full Specifications

• Form Factor: 2U Rack · 16th Generation · dual socket (one populated)
• Processor: Intel Xeon Silver 4410Y — 12C/24T · 2.0GHz · 30MB · 16GT/s · 150W
• Memory: 32GB RDIMM DDR5 6400MT/s Dual Rank
• Storage: 2.4TB SAS ISE 12Gbps 10K 512e 2.5" in 3.5" hybrid carrier
• Chassis: 3.5" with up to 12 drives (SAS/SATA) · PERC11
• RAID: PERC H755 Adapter, Low Profile
• Management: iDRAC9 Enterprise 16G
• Networking: Broadcom 5720 Dual Port 1Gb On-Board LOM
• Power: Dual 800W MM Redundant (1+1) Hot-Plug PSU
• Warranty: 3-Year Basic Next Business Day on-site hardware support

Warranty & Support

• Warranty: 3-Year Basic Next Business Day on-site hardware support from Dell
• Delivery: all regions of Saudi Arabia
• VAT invoice and authorized-dealer warranty via Ibtikar Smart Solutions
