Fanvil Entry & Security Command Panel i504W

Description

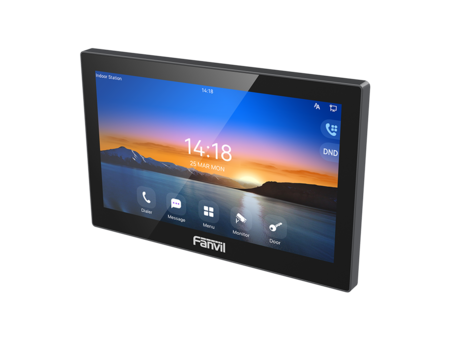

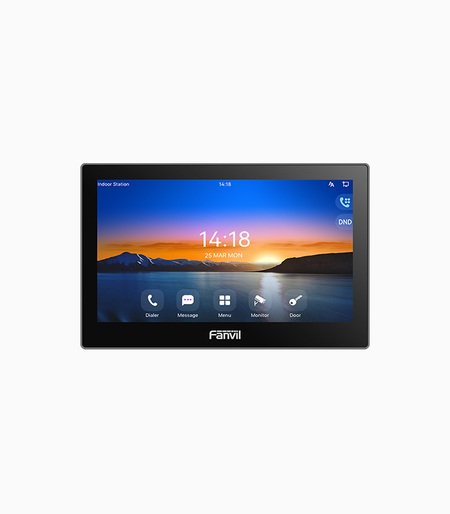

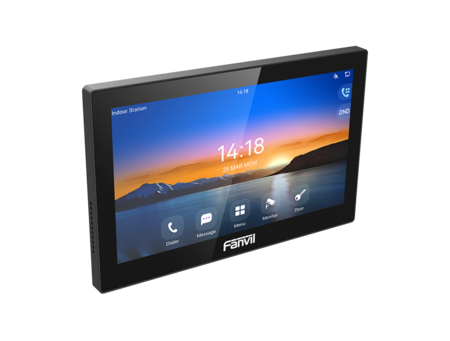

Product Description: Fanvil i504W SIP Indoor Station

The Fanvil i504W is a versatile and intelligent communication station designed to be the central control point for modern building access and security. It combines a sleek 7-inch touchscreen interface with robust SIP telephony and extensive security hardware integration. The defining feature of the i504W is its built-in dual-band Wi-Fi, offering unparalleled installation flexibility by eliminating the absolute need for a wired network connection at the point of mounting.

This model is the ideal choice for residential, commercial, and retrofit projects where running Ethernet cables is challenging or where wireless network redundancy is desired, without compromising on core functionality.

Key Features & Specifications

• Dual Connectivity for Maximum Flexibility: Supports both reliable Power over Ethernet (PoE) and built-in dual-band Wi-Fi (2.4GHz & 5GHz). This allows for clean, cable-free installations or a stable wired backbone.

• Centralized Security Hub: Functions as an aggregation point with 8 alarm input ports, 1 doorbell trigger, and 1 short-circuit output to directly manage electric locks, sensors, and other security peripherals.

• High-Definition Video Intercom: Features a 7-inch capacitive touchscreen (1024 x 600) for crisp 1080p video calls. Supports modern video codecs H.264 & H.265.

• Superior Audio Communication: Delivers full-duplex HD wideband audio using G.722 and Opus codecs through a 2W speaker for clear, natural conversation.

• Multi-Line SIP & Video Integration: Registers up to 6 SIP accounts simultaneously. ONVIF protocol support enables live video streaming from a wide array of third-party security cameras directly on its screen.

• Professional & Reliable Platform: Runs on a stable, lightweight Linux system and includes a 10/100Mbps Ethernet port, RS-485 interface for building automation, and is designed for wall-mount installation.

Model-Specific Advantage: The “W” in i504W

The i504W is defined by its integrated Wi-Fi connectivity. This key differentiator provides:

• Installation Freedom: Perfect for locations where drilling for network cables is impractical, such as marble lobbies, rented spaces, or listed buildings.

• Network Redundancy: Can be configured to switch to Wi-Fi if the wired connection is disrupted, ensuring higher system availability.

• Cost-Effective Retrofitting: Drastically reduces installation complexity and cost in existing buildings by leveraging the existing wireless infrastructure.

Target Applications

• Multi-Tenant Residential Buildings (Apartments, Condominiums)

• Commercial Offices & Corporate Lobbies

• Gated Communities & Luxury Villas

• Retrofit Projects in existing structures

Core Value Proposition

The Fanvil i504W provides the perfect balance of wireless convenience and professional-grade security integration, making advanced access control achievable in virtually any environment.
