Description
Product Overview

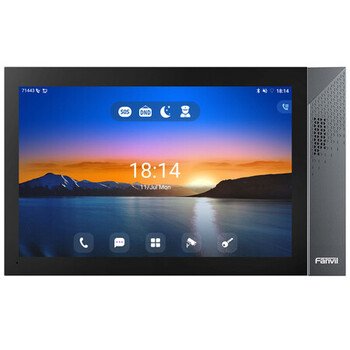

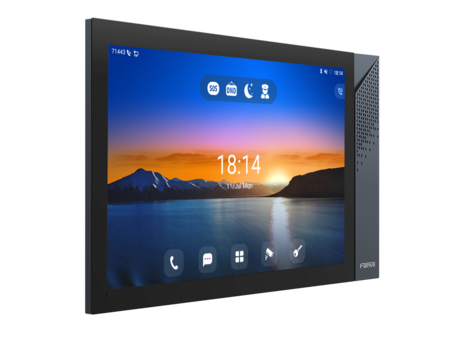

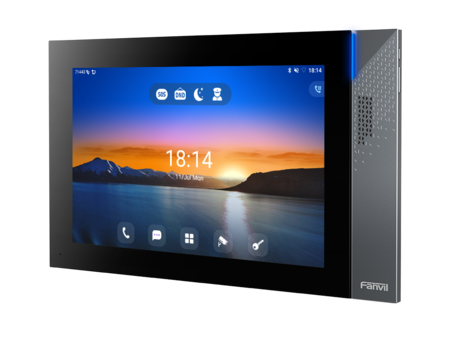

The Fanvil i57A is a premium, Android-based SIP indoor station engineered to serve as the central video communication and security management hub for modern residential and commercial properties. Featuring a large 10.1-inch high-definition capacitive touchscreen and running on Android 9.0, it combines an intuitive user interface with an open platform for extensive customization and third-party application integration. Ideal for gated communities, villas, and office buildings, it transforms traditional intercom functionality into a comprehensive smart building management solution with real-time video monitoring and remote access control.
Key Features & Benefits
-
Large HD Touchscreen Interface: A vivid 10.1-inch (1280×800) capacitive touchscreen provides an excellent visual experience for video calls, surveillance feeds, and easy menu navigation.
-
Open Android 9.0 Platform: Enables limitless customization, allowing the installation of tailored apps and integration with other building management or security systems to meet specific project needs.
-
Integrated Security & Access Control: Functions as a command center with support for 8 alarm inputs, 2 alarm outputs, a doorbell trigger, and ONVIF protocol compatibility for seamless IP camera integration, enabling real-time monitoring and remote door release.
-
High-Definition Video Communication: Supports crystal-clear 1080p video calls using the H.264 codec, ensuring superior image quality for visitor identification and monitoring.
-
Flexible Connectivity & Expansion: Equipped with built-in dual-band Wi-Fi (2.4/5 GHz) and Bluetooth 5.0 for wireless flexibility. Includes a USB port and a TF card slot (supporting up to 256GB) for local storage and data expansion.
-
Simplified Installation: Supports Power over Ethernet (PoE), allowing for easy installation with a single network cable for both power and data transmission.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | i57A SIP Indoor Station |
| Operating System | Android 9.0 |
| Display | 10.1-inch Capacitive Touchscreen, 1280 × 800 pixels |
| Video | 1080p Resolution, H.264 Codec |
| Audio | Wideband (G.722, Opus), 2W Speaker |
| SIP Accounts | 2 Lines |
| Wireless | Built-in Wi-Fi (2.4/5 GHz), Bluetooth 5.0 |
| Expansion Ports | 1 × USB, 1 × TF Card Slot (up to 256GB) |
| Security Interfaces | 8 Alarm Inputs, 2 Alarm Outputs, 1 Doorbell Interface |
| Control Interface | 1 × RS-485 |
| Network & Power | 10/100 Mbps Ethernet, PoE Support (IEEE 802.3af) |
| Installation | Wall Mount |
